Spectraline | Professional Indoor Products Linear LED Profile

Premium medium-format architectural LED profile (35.4mm x 35.0mm) designed around the experience of light.

SURFACE LINEAR | LED PROFILE

Spectraline SURFACE LINEAR

Starlight - Spectraline Linear LED Product Image
01 / 02

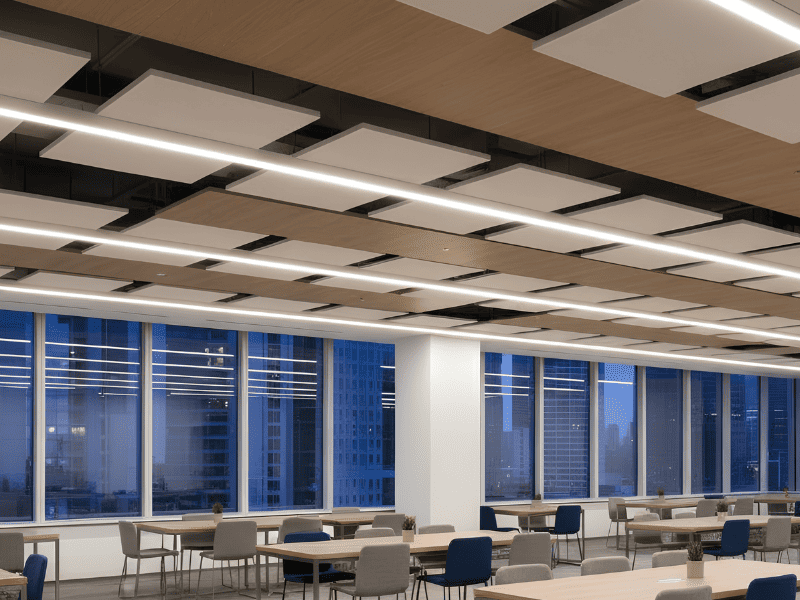

Starlight - Spectraline Linear LED Product Image 1 01
Starlight - Spectraline Linear LED Product Image 2 02

High-Performance SURFACE LINEAR LED Fixture for Architectural Lighting

Overview

The Spectraline Series is a robust, square-profile linear housing crafted to create clean, intentional geometric lines. Measuring 35.4 mm wide by 35.0 mm deep with a 26.0 mm internal spacing, its box-shaped architecture provides an ideal mixing chamber for high-intensity LED systems, allowing light to blend flawlessly before exiting the profile. Extruded from premium aluminum for optimized thermal management, it can be ordered in custom lengths and custom RAL powder-coated or anodized finishes to accent high-end workspaces and modern bathrooms alike.

The Spectraline utilizes high-grade PMMA diffusers in Milky or Frosted options to cast a perfectly uniform 120-degree light distribution, completely smoothing away harsh diode spotting. It offers extensive custom configurations for premium interiors, supporting static white ranges from 2200K up to 6500K, alongside full multi-channel Tunable White, RGB, RGBW, and RGBWW strip setups. Handling strong power outputs from 11.5W to 32.5W per meter with IP40 and IP54 protection ratings, it excels at office workspace illumination, ceiling lines, luxury retail environments, architectural linear features, and back-lit mirror frames. Its secure mounting clips and clean end caps provide an elegant, ultra-professional finish.

SLL3535

Code

85+

CRI

24 V DC

Input Power

IP40/IP54

IP Rating

Technical Overview and Engineering Specifications for Spectraline

Technical Data

Technical Specifications

Engineered Specifications for Professional Performance.

Code SLL3535
Size 35.4 x 35.0 mm
CRI 85+
Input Power 24 V DC
IP Rating IP40/IP54

Bespoke Customisation and Professional Installation Options

Bespoke Engineering

Customisation Options Available

Every project is unique. Configure your LumaSaber to exact specifications.

DIFFUSER PMMA Diffuser (Milky,Frosted)
CCT 2200K/2700K/3000K/3500K/4000K/5000K/6000K/6500K, Tunable White, RGB, RGBW, RGBWW
Watts/M 11.5W - 32.5 W
Light Angle 120 Degrees
Finish Custom Size and Custom Powder Coating finish or Anodized finish available upon request as per RAL code
Application Workspaces, Ceiling Lines, Retail Environments, Linear Feature Lighting, Modern Commercial Interiors, Architectural Illumination
Detailed Technical Data: LED Strip, Profile, and Meanwell Driver

5-Year Manufacturer Warranty

Covers LED strip, profile, and Meanwell driver. Backed by our factory in Pune.

LED Strip Profile Driver
Starlight LED: Precision Manufacturing and 5-Year Warranty on Spectraline
