Recessa | Professional Indoor Products Linear LED Profile

Massive, deep flanged recessed linear LED profile (77mm x 80mm) optimized for high-performance architectural execution.

RECESSED LINEAR | LED PROFILE

Recessa RECESSED LINEAR

Starlight - Recessa Linear LED Product Image
01 / 02

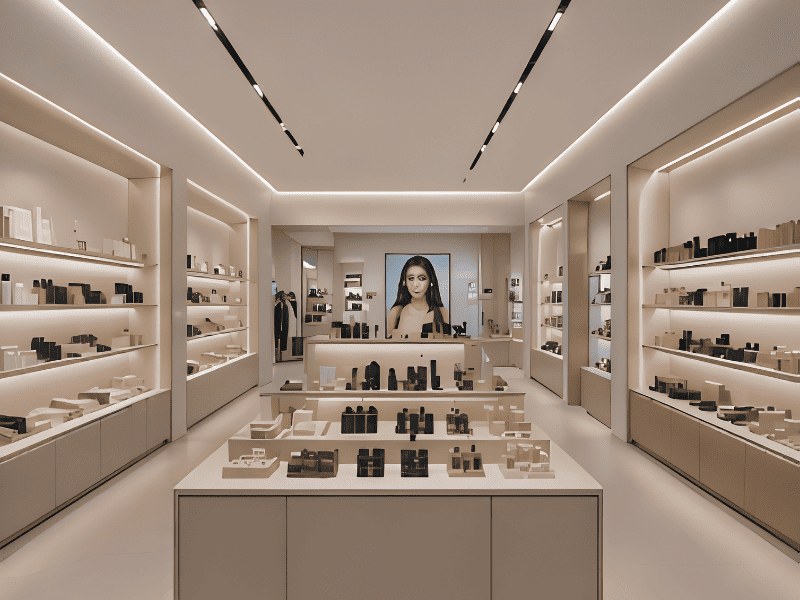

Starlight - Recessa Linear LED Product Image 1 01

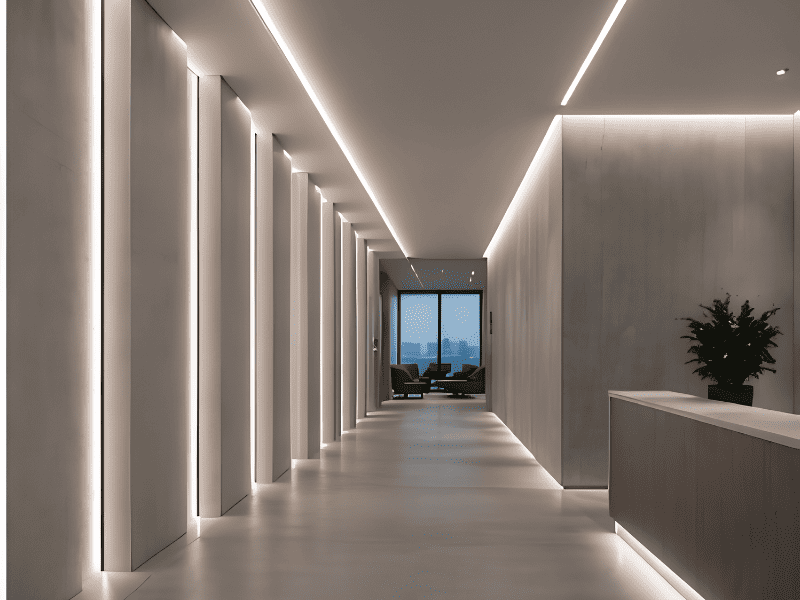

Starlight - Recessa Linear LED Product Image 2 02

High-Performance RECESSED LINEAR LED Fixture for Architectural Lighting

Overview

The Recessa Series represents the absolute pinnacle of large-scale commercial linear lighting, optimized to deliver exceptional architectural performance on a grand scale. Boasting a massive 77 mm wide flanged top flange, an 80 mm structural depth, and a wide 60 mm base opening, this heavy-duty trunking profile is purpose-built to function as a primary architectural feature while comfortably housing robust driver configurations and high-performance multi-row LED arrays. Extruded from top-tier structural aluminum to manage intensive heat loads effortlessly, it can be finished in bespoke RAL powder coatings or custom anodizing to blend seamlessly into large public volumes.

The series employs a premium wide-format PMMA diffuser available in Opal, Frosted, or Milky options, turning high-intensity output into a perfectly uniform, glare-free 120-degree field of light down onto expansive spaces. Offering ultimate creative freedom for luxury settings, Recessa supports classic white color temperatures from 2200K to 6500K, alongside integrated Tunable White, RGB, RGBW, and RGBWW dynamic color systems. Scaling smoothly from a soft 4.5W up to a powerful 34.5W per meter and backed by IP40/IP54 ratings, it is the definitive architectural selection for suspended linear systems, office workspaces, architectural pendant lighting, continuous commercial installations, and corporate conference rooms. Complete with heavy-duty mounting accessories and tailored structural end caps, it achieves an impeccable, clean-lined installation every time.

SLL7780X

Code

85+

CRI

24 V DC

Input Power

IP40/IP54

IP Rating

Technical Overview and Engineering Specifications for Recessa

Technical Data

Technical Specifications

Engineered Specifications for Professional Performance.

Code SLL7780X
Size 77 x 80 mm
CRI 85+
Input Power 24 V DC
IP Rating IP40/IP54

Bespoke Customisation and Professional Installation Options

Bespoke Engineering

Customisation Options Available

Every project is unique. Configure your LumaSaber to exact specifications.

DIFFUSER PMMA Diffuser (Opal, Frosted, Milky)
CCT 2200K/2700K/3000K/3500K/4000K/5000K/6000K/6500K, Tunable White, RGB, RGBW, RGBWW
Watts/M 4.5W - 34.5 W
Light Direction 120 Degrees
Finish Custom Size and Custom Powder Coating finish or Anodized finish available upon request as per RAL code
Application Suspended Linear Systems, Office Workspaces, Architectural Pendant Lighting, Continuous Commercial Lighting, Conference Table Illumination, Modern Ceiling Geometry
Detailed Technical Data: LED Strip, Profile, and Meanwell Driver

5-Year Manufacturer Warranty

Covers LED strip, profile, and Meanwell driver. Backed by our factory in Pune.

LED Strip Profile Driver
Starlight LED: Precision Manufacturing and 5-Year Warranty on Recessa
