GalacticBeam | Professional Indoor Products Linear LED Profile

Sleek flanged recessed linear LED channel (30.5mm x 20.9mm) engineered for commercial and high-end residential interiors.

RECESSED LINEAR | LED PROFILE

GalacticBeam RECESSED LINEAR

Starlight - GalacticBeam Linear LED Product Image
01 / 03

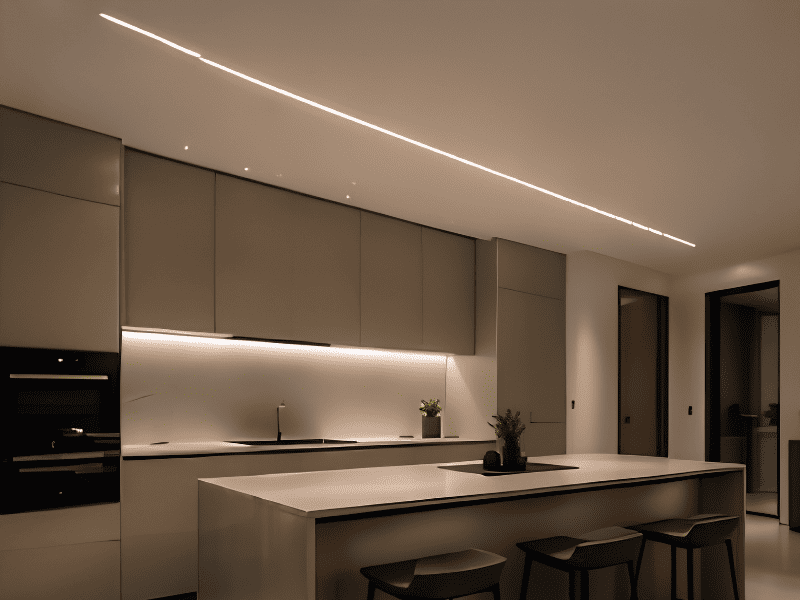

Starlight - GalacticBeam Linear LED Product Image 1 01

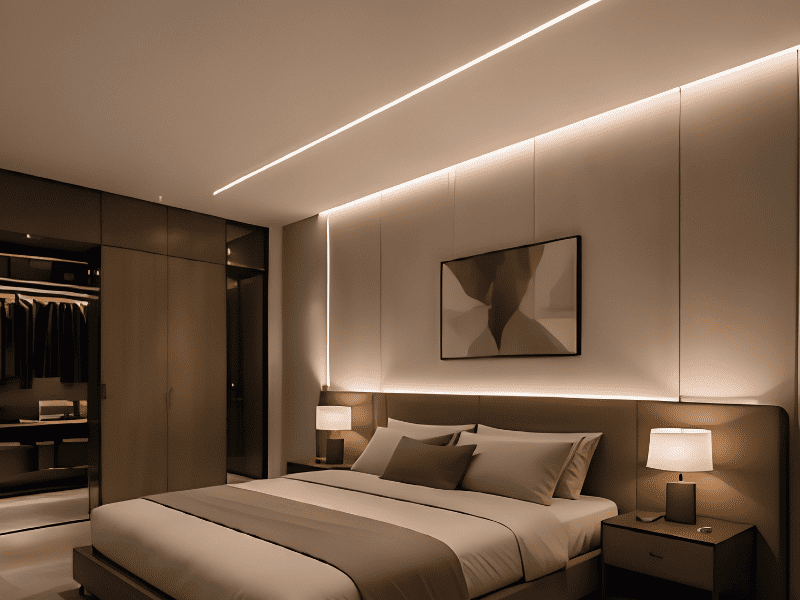

Starlight - GalacticBeam Linear LED Product Image 2 02

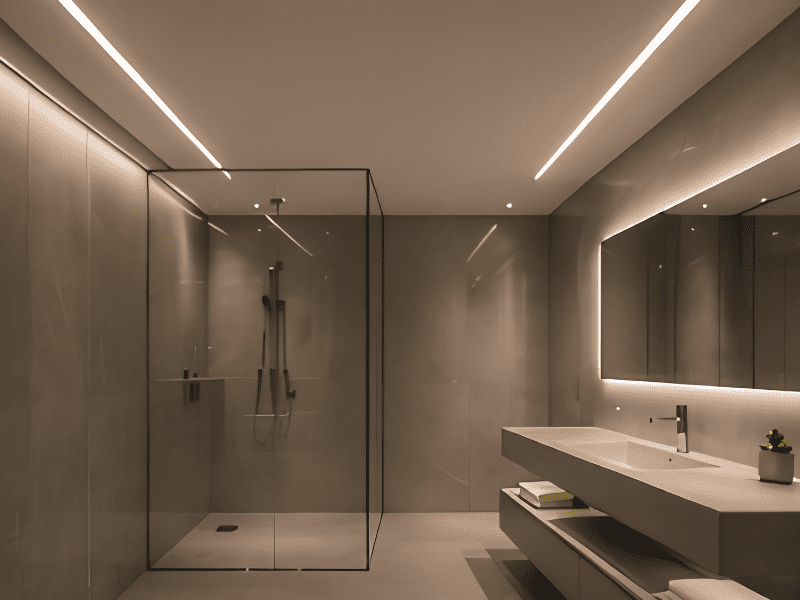

Starlight - GalacticBeam Linear LED Product Image 3 03

High-Performance RECESSED LINEAR LED Fixture for Architectural Lighting

Overview

The Galactic Beam Series represents a premium standard in commercial linear lighting, intentionally designed for high-end recessed ceiling applications. Boasting a well-balanced 30.5 mm flange width, a 20.9 mm profile depth, and a 23.6 mm wide base channel, it integrates smoothly into false ceilings to create clean, unbroken corridors of light. Fabricated from top-tier aluminum for advanced thermal management, it effectively handles everyday heat loads while providing an elegant, built-in look that can be custom powder-coated or anodized upon request to match any RAL color scheme.

Engineered with a high-quality PMMA diffuser available in Opal, Frosted, or Milky options, Galactic Beam diffuses raw output at a wide 120-degree angle to deliver an unblemished, comfortable glow. The series offers exceptional technical versatility, supporting standard white ranges from 2200K to 6500K, as well as full compatibility with Tunable White, RGB, RGBW, and RGBWW strip systems. Scaling efficiently from 4.5W to a strong 22.5W per meter with IP40/IP54 ratings, it stands as the ideal choice for minimal linear details, seamless residential recessing, furniture integration, contemporary interior accents, and slim ceiling grooves. Tailored end caps and mounting accessories ensure a swift, professional installation.

SLL3020X

Code

85+

CRI

24 V DC

Input Power

IP40/IP54

IP Rating

Technical Overview and Engineering Specifications for GalacticBeam

Technical Data

Technical Specifications

Engineered Specifications for Professional Performance.

Code SLL3020X
Size 30.5 x 20.9 mm
CRI 85+
Input Power 24 V DC
IP Rating IP40/IP54

Bespoke Customisation and Professional Installation Options

Bespoke Engineering

Customisation Options Available

Every project is unique. Configure your LumaSaber to exact specifications.

DIFFUSER PMMA Diffuser (Opal, Frosted, Milky)
CCT 2200K/2700K/3000K/3500K/4000K/5000K/6000K/6500K, Tunable White, RGB, RGBW, RGBWW
Watts/M 4.5W - 22.5 W
Light Direction 120 Degrees
Finish Custom Size and Custom Powder Coating finish or Anodized finish available upon request as per RAL code
Application Minimal Linear Details, Seamless Recessed Illumination, Furniture Integration, Contemporary Interior Accents, Slim Ceiling Grooves, Refined Architectural Lighting
Detailed Technical Data: LED Strip, Profile, and Meanwell Driver

5-Year Manufacturer Warranty

Covers LED strip, profile, and Meanwell driver. Backed by our factory in Pune.

LED Strip Profile Driver
Starlight LED: Precision Manufacturing and 5-Year Warranty on GalacticBeam
