CoreGlow | Professional Indoor Products Linear LED Profile

Ultra-shallow, wide surface-mounted LED profile (15.2mm x 6mm) designed to fit seamlessly into modern spaces.

SURFACE LINEAR | LED PROFILE

CoreGlow SURFACE LINEAR

Starlight - CoreGlow Linear LED Product Image
01 / 02

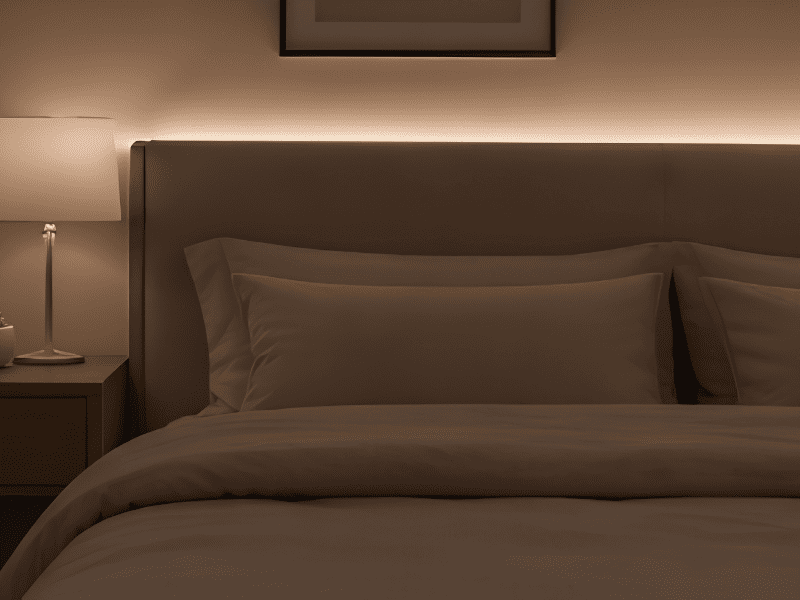

Starlight - CoreGlow Linear LED Product Image 1 01

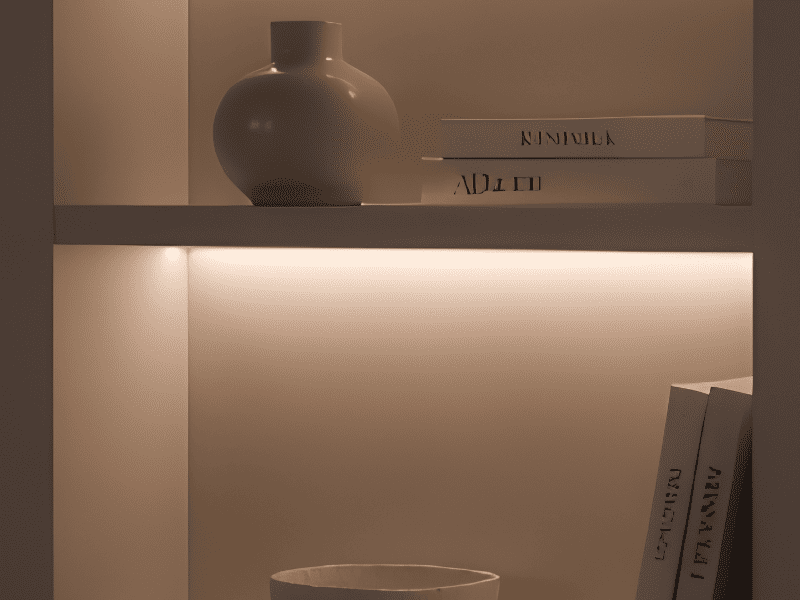

Starlight - CoreGlow Linear LED Product Image 2 02

High-Performance SURFACE LINEAR LED Fixture for Architectural Lighting

Overview

The CoreGlow Series is a sleek, ultra-low-profile surface-mounted LED profile engineered to bring the language of modern architecture into premium interior spaces. Featuring an incredibly shallow depth of just 6mm and a slim 15.2mm width, its minimalist footprint delivers a striking, seamless glow without requiring complex structural recessing. Crafted from high-grade aluminum, the profile is available in custom anodized or powder-coated finishes matched to any RAL code, functioning as a highly effective thermal heat sink that maximizes system longevity.

Engineered with versatility in mind, the CoreGlow Series can be paired with high-performance PMMA diffusers in Opal, Milky, or Frosted options to eliminate diode spotting and cast a perfectly uniform 120° beam of light. It offers immense creative freedom for designers, supporting everything from static white color temperatures (2200K to 6500K) to Tunable White, RGB, RGBWW, and RGBA dynamic lighting options. With power configurations ranging from 4.5W to 14.5W per meter and IP40/IP54 rating options, it is the definitive choice for sophisticated shelf lighting, cabinet illumination, and seamless furniture integration. Supported by dedicated mounting caps and end caps, its straightforward surface installation ensures a flawless, professional finish every time.

SLL1506Z

Code

85+

CRI

24 V DC

Input Power

IP40/IP54

IP Rating

Technical Overview and Engineering Specifications for CoreGlow

Technical Data

Technical Specifications

Engineered Specifications for Professional Performance.

Code SLL1506Z
Size 15.2 x 6 mm
CRI 85+
Input Power 24 V DC
IP Rating IP40/IP54

Bespoke Customisation and Professional Installation Options

Bespoke Engineering

Customisation Options Available

Every project is unique. Configure your LumaSaber to exact specifications.

DIFFUSER PMMA Diffuser (Opal, Milky, Frosted)
CCT 2200K/2700K/3000K/3500K/4000K/5000K/6000K/6500K, Tunable White, RGB, RGBWW, RGBA
Watts/M 4.5W - 14.5 W
Beam Angle 120 Degrees
Finish Custom Size and Custom Powder Coating finish or Anodized finish available upon request as per RAL code
Application Shelf Lighting, Cabinet Illumination, Display Lighting, Under-Cabinet Lighting, Furniture Integration, Decorative Accent Lighting
Detailed Technical Data: LED Strip, Profile, and Meanwell Driver

5-Year Manufacturer Warranty

Covers LED strip, profile, and Meanwell driver. Backed by our factory in Pune.

LED Strip Profile Driver
Starlight LED: Precision Manufacturing and 5-Year Warranty on CoreGlow

Ready to illuminate your vision?

Discuss your project with us and let's create something brilliant.
