MicroLine | Professional Indoor Products Linear LED Profile

Sleek, architectural LED profile (12mm x 14mm) designed for minimal accentuation and micro-recessed applications.

SURFACE LINEAR | LED PROFILE

MicroLine SURFACE LINEAR

Starlight - MicroLine Linear LED Product Image
01 / 02

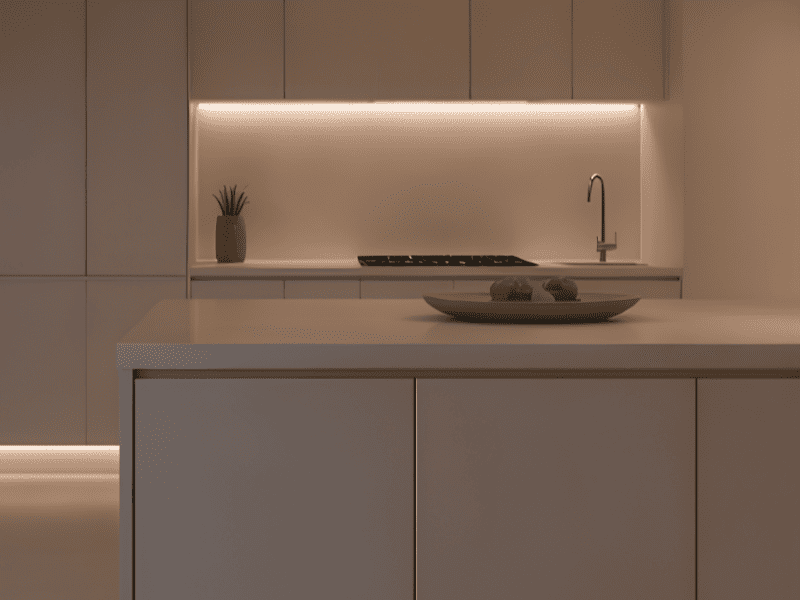

Starlight - MicroLine Linear LED Product Image 1 01

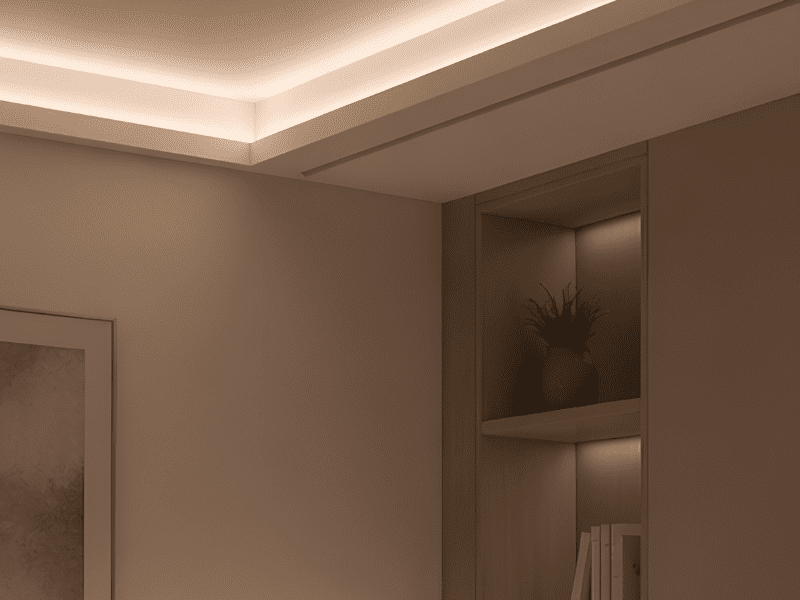

Starlight - MicroLine Linear LED Product Image 2 02

High-Performance SURFACE LINEAR LED Fixture for Architectural Lighting

Overview

The MicroLine Series offers linear lighting meticulously crafted for fine architecture, providing a beautifully balanced surface or micro-recessed option. Featuring a clean 12 mm wide by 14 mm deep square silhouette, this profile provides a crisp, defined statement that works in complete harmony with contemporary spaces. Its high-grade aluminum core functions as a robust thermal radiator, available in custom sizes and RAL-matched powder-coated or anodized finishes to suit exact project aesthetics.

The series employs a premium PMMA diffuser in Opal, Milky, or Frosted finishes, scattering light over a uniform 120-degree angle to deliver an unblemished, soft distribution plot. It boasts exceptional technical diversity, accommodating a complete range of color temperatures from 2200K to 6500K, as well as Tunable White, RGB, RGBWW, and RGBA systems. Capable of driving versatile power loads from 4.5W up to a strong 19.5W per meter, it is highly suited for micro-recessed ceiling patterns, joinery detailing, shadow gap lighting, and minimalist architectural accents. Streamlined mounting caps and end caps ensure the final look is exceptionally tight and integrated.

SLL1214Z

Code

85+

CRI

24 V DC

Input Power

IP40/IP54

IP Rating

Technical Overview and Engineering Specifications for MicroLine

Technical Data

Technical Specifications

Engineered Specifications for Professional Performance.

Code SLL1214Z
Size 12 x 14 mm
CRI 85+
Input Power 24 V DC
IP Rating IP40/IP54

Bespoke Customisation and Professional Installation Options

Bespoke Engineering

Customisation Options Available

Every project is unique. Configure your LumaSaber to exact specifications.

DIFFUSER PMMA Diffuser (Opal, Milky, Frosted)
CCT 2200K/2700K/3000K/3500K/4000K/5000K/6000K/6500K, Tunable White, RGB, RGBWW, RGBA
Watts/M 4.5W - 19.5 W
Beam Angle 120 Degrees
Finish Custom Size and Custom Powder Coating finish or Anodized finish available upon request as per RAL code
Application Micro Recessed Lighting, Joinery Detailing, Display Shelving, Shadow Gap Lighting, Cabinet Integration, Minimal Architectural Accents
Detailed Technical Data: LED Strip, Profile, and Meanwell Driver

5-Year Manufacturer Warranty

Covers LED strip, profile, and Meanwell driver. Backed by our factory in Pune.

LED Strip Profile Driver
Starlight LED: Precision Manufacturing and 5-Year Warranty on MicroLine
